Measure the condition of your arteries to detect heart disease in advance.

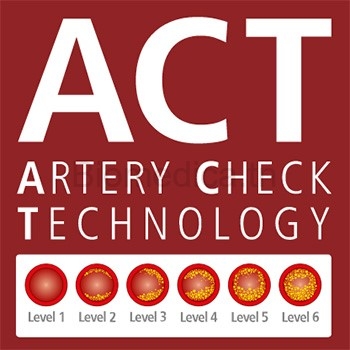

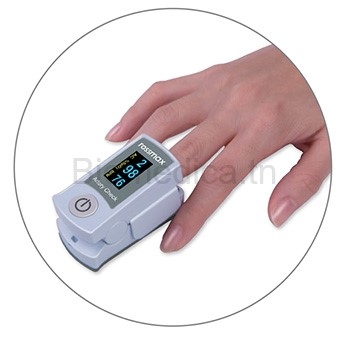

Introducing the Rossmax SB200 Finger Oximeter, a remarkable non-invasive tool capable of assessing various aspects of arterial health. This innovative device measures arterial stiffening, arteriosclerosis, blood vessel quality, SpO2 saturation and heart rate, all in one. To get accurate readings, simply place the device on your fingertip. The ACT index measurement analyzes SpO2 signals and uses the derived waveform to estimate vessel wall elasticity. Using this information, arterial status can be classified into six distinct levels, as shown in the attached image.

Level 1: Arteries and blood circulation are in superb condition at level 1.
Level 2: The condition of the arteries and blood circulation is excellent at level 2.
Level 3: The condition of the arteries and blood circulation is considered acceptable at level 3.
Level 4: Arteries and blood circulation are generally in satisfactory condition at level 4.
Level 5: The condition of the arteries and blood circulation is moderate at level 5.
Level 6: The condition of the arteries and blood circulation at level 6 is significantly deteriorated.

Using the ACT index, SpO2 measurement can effectively and effortlessly assess the presence of arteriosclerosis. In addition, this device has the ability to assess the likelihood of peripheral circulatory disorders as well as heart and vascular diseases. The specifications of the Rossmax Pulse Oximeter are as follows.

This tool is applicable to measuring oxygen saturation levels in adults and children. The ATC index can be represented visually via a graphical display. In a study conducted by the National Taiwan University Hospital, the condition of arteriosclerosis was assessed and classified into six distinct phases.

-----

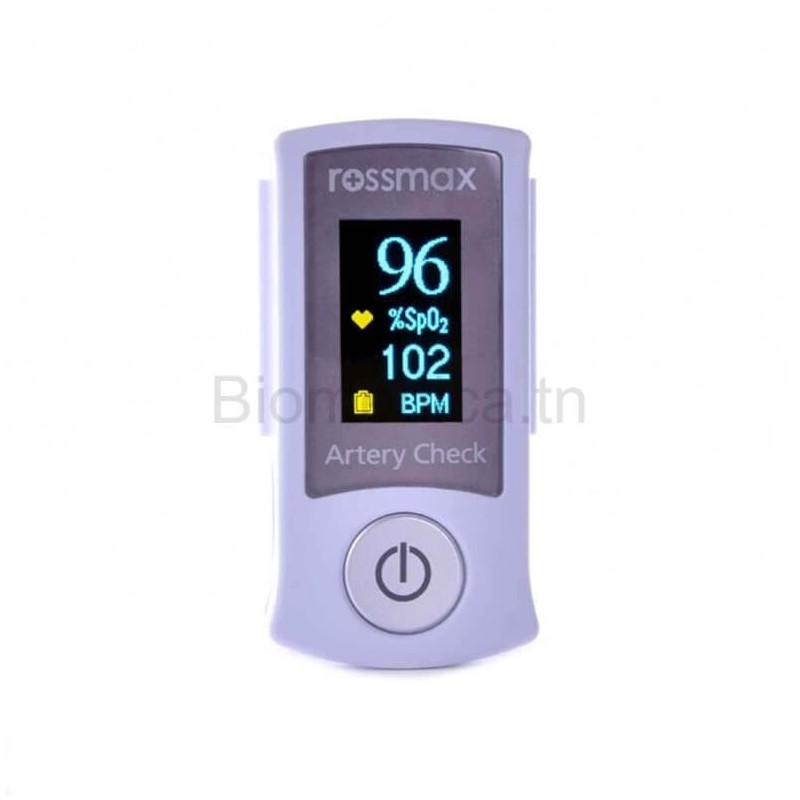

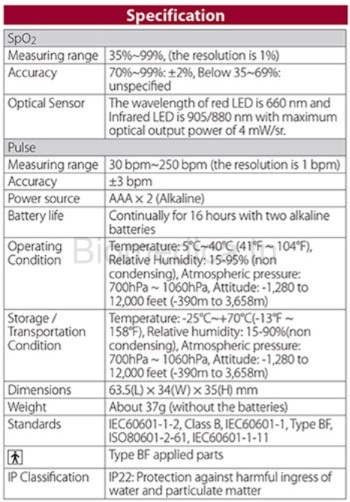

Detailed specifications of the Rossmax SB200 Pulse Oximeter

- Performing the one-touch operation is a simple and effortless task.
- An OLED display is a type of screen technology that offers vibrant, high-quality visual output.
- Thanks to its lightweight design and compact size, the device is ideally suited for use on the go.
- The battery charge level is indicated on the screen.
- This device operates using a pair of AAA batteries.
- The battery life of this device allows continuous use of up to 16 hours on a single charge.
- The device will automatically disconnect if left unused for a period of 8 seconds.
- Switch allows quick change of display direction with minimal contact.
- If the limit values are exceeded, audible and visual alarms will be triggered.
- The product comes with a manufacturer's warranty valid for a period of one year.
- The dimensions of the object are 63.5 mm in length, 34 mm in width and 55 mm in height.
- The weight of the item, excluding batteries, is recorded at 37 grams.
- The SpO2 measurement range is between 35% and 99%.
- The pulse measurement range is between 30 and 250 beats per minute.

-----
The condition of the artery serves as an indicator of potential risks associated with the following diseases: Atherosclerosis - Heart attack - Myocardial infarction - Detection of the condition of the artery.

Detection of artery-related conditions.
By assessing the condition of your artery, you can gain insight into potential susceptibility to diseases such as arteriosclerosis, peripheral circulation disorders and cardiovascular disease. Using the ROSSMAX ACT pulse oximeter, integrated into the system, facilitates the rapid and effective identification of these conditions.

-----

ACT (artery checking technology)

Using Artery Check Technology (ACT), SpO2 signals are analyzed to assess the condition of the arteries by examining the derived waveform. This advanced technology not only determines the stiffness of the arteries, but also classifies the arterial condition into 6 different levels. Results are conveniently displayed in a user-friendly graphical interface, providing easy access to information about heart rate, SpO2 levels and current artery condition.

-----

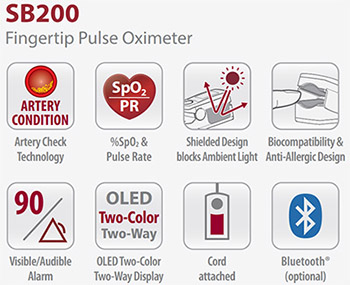

General Specifications

- ACT, which stands for Integrated Artery Check Technology, is a cutting-edge innovation in the field of medical diagnostics.
- Instant readings of Spo2, heart rate and artery health can be obtained within a minute.
- Design a shield to block ambient light.
- Safeguarding biocompatibility.
- Indicator to measure the impulse force.
- An alert that can be seen and heard.
- The OLED display is designed with bidirectional functionality and a dual-color scheme.
- Connected together by a fine wire.

----
The oximeter is used to measure blood oxygen saturation. This device is widely used in healthcare establishments, hospitals, clinics for regular monitoring:
- respiratory disease: COPD, also known as chronic obstructive pulmonary disease.
- Asthma,
- Pneumonia/lung cancer.
- Anemia,
- Heart attacks / heart failure / heart defects.
- Sleep Apnea.

-----
